Ubiquiti

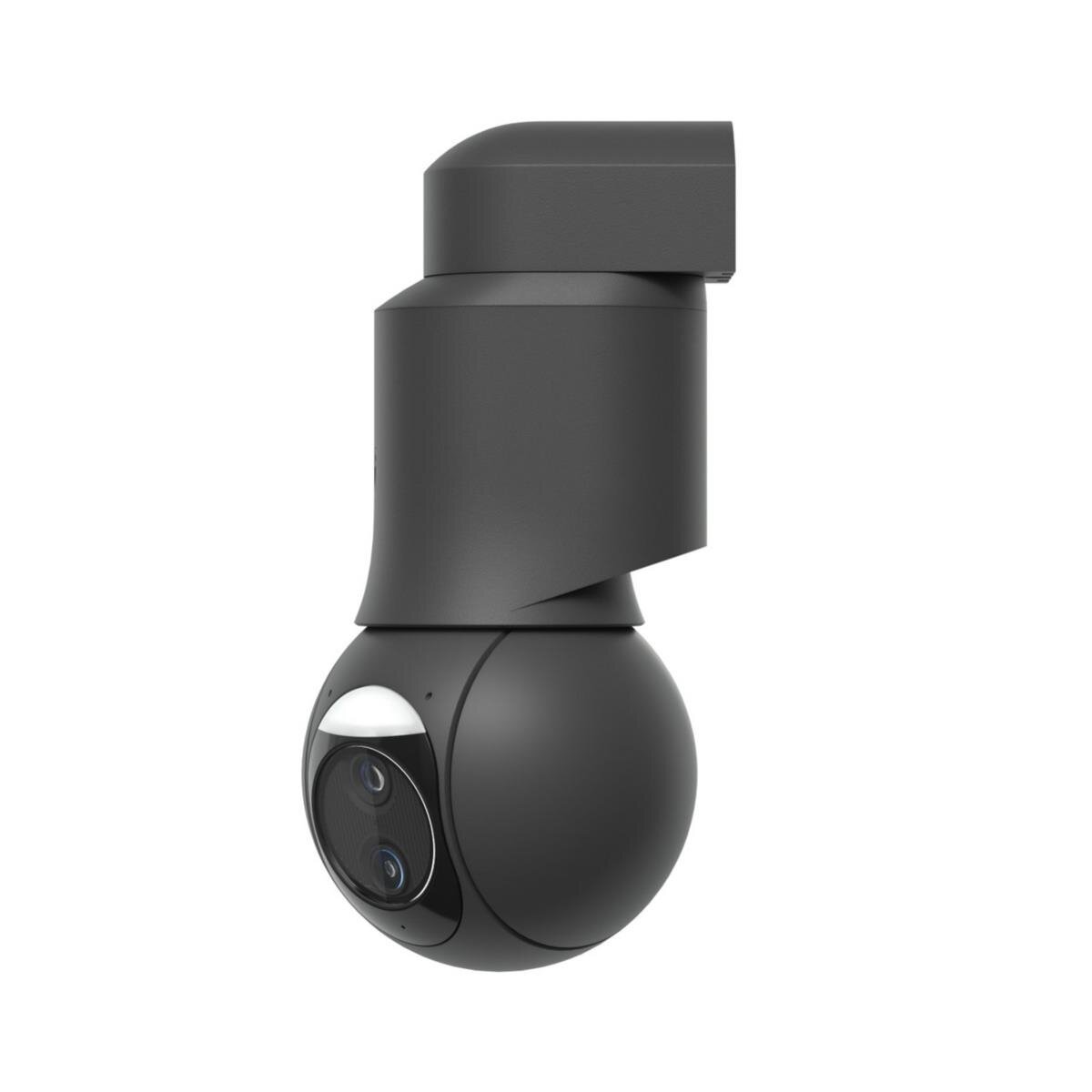

Ubiquiti G6 PTZ – UVC-G6-PTZ-B
MPN: UVC-G6-PTZ-B
£438.78
VAT included
In stock
The Ubiquiti G6 PTZ (UVC-G6-PTZ-B) is a unifi for supported UniFi deployments. Verified official specifications include dimensions: Without mount: ⌀107.2 x 104.5 x 203.2 mm (⌀4.2 x 4.1 x 8") With mount: ⌀107.2 x 111 x 230.2 mm (⌀4.2 x 4.4 x 9.1"), ir night vision: 30 m (98 ft), zoom mode: 10x Hybrid.
Key features
- Dimensions: Without mount: ⌀107.2 x 104.5 x 203.2 mm (⌀4.2 x 4.1 x 8") With mount: ⌀107.2 x 111 x 230.2 mm (⌀4.2 x 4.4 x 9.1")
- IR Night Vision: 30 m (98 ft)
- Zoom Mode: 10x Hybrid
- Face Recognition: Supported
- License Plate Recognition: Supported
- Smart Detections (People, Vehicles, Animals): Supported
- Resolution: 4K
- Field of View: Wide: H: 109.9°, V: 56.7°, D: 134.1° Tele: H: 26.6°, V: 15.1° , D: 30.4°
Product details
- Manufacturer
- Ubiquiti
- Manufacturer part number
- UVC-G6-PTZ-B
- Product type
- Security Cameras
- GTIN / EAN
- 0810177161493
- Product subtype
- Network Camera
Technical specifications
- Colour
- Black
- Integrated multimedia functions
- Face Recognition
- Pixelcount sensor native
- 8MP
- Country of origin
- TW
Dimensions and weight
- Net weight
- 1000 g
- Estimated gross weight
- 1.932
Classifications
- eClassV7
- 19-10-01-08
- UNSPSC code
- 45121520
- Customs tariff number
- 85258900
Overview
- Dimensions
- Without mount: ⌀107.2 x 104.5 x 203.2 mm (⌀4.2 x 4.1 x 8") With mount: ⌀107.2 x 111 x 230.2 mm (⌀4.2 x 4.4 x 9.1")
- IR Night Vision
- 30 m (98 ft)
- Zoom Mode
- 10x Hybrid
- Face Recognition
- Supported
- License Plate Recognition
- Supported
- Smart Detections (People, Vehicles, Animals)
- Supported
- Resolution
- 4K
- Field of View
- Wide: H: 109.9°, V: 56.7°, D: 134.1° Tele: H: 26.6°, V: 15.1° , D: 30.4°
- Pan-Tilt Range
- Pan: 350° Tilt: 100°
- Audio
- Two-way audio
- Weatherproofing
- IP66
- Tamper Resistance
- IK04
- Mounting
- Wall, Surface, Ceiling, Pole mount (Included) Corner, In-Ceiling, Pendant mount, Conduit adapter (Optional)
- UniFi Application Suite
- Protect
Performance
- Networking Interface
- 10/100 MbE RJ45 port
- Image Settings
- Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
- Max. Frame Rate
- 30 FPS
- Resolution
- 8MP 3840 x 2160 (16:9)
- Sensor
- Wide: 1/1.8" 8MP Tele: 1/1.8" 8MP
- Lens
- Wide: F 4.46 mm; ƒ/1.65 Tele: F 16.3 mm; ƒ/2.4
- Night Mode
- Built-in IR LED illumination and IR cut filter
Hardware
- Max. Power Consumption
- 24.5W
- Supported Voltage Range
- 42.5–57V DC
- Power Method
- PoE+
- Processor
- Quad-core Arm® Cortex®-A53 based chip
- Pole Mount Diameter
- 1.5–2" (38–50 mm)
- Weight
- Without arm mount: 1 kg (2.2 lb) With arm mount: 1.1 kg (2.4 lb)
- Enclosure Material
- Aluminum alloy, polycarbonate
- Mount Material
- Arm mount: polycarbonate Pole mount: aluminum alloy
- Expansion Slot
- MicroSD card
- Button
- (1) Factory reset
- Ambient Operating Temperature
- -30 to 50° C (-22 to 122° F)
- Ambient Operating Humidity
- 20 to 90% noncondensing
- NDAA Compliant
- Supported
- Certifications
- CE, FCC, IC
